*Please be aware that DNZ mounts are for current models only. Older BLRs (1970's etc) are tapped differently and may not work with these mounts. Double check the "Spec" tab and measure your receiver to ensure proper fit.

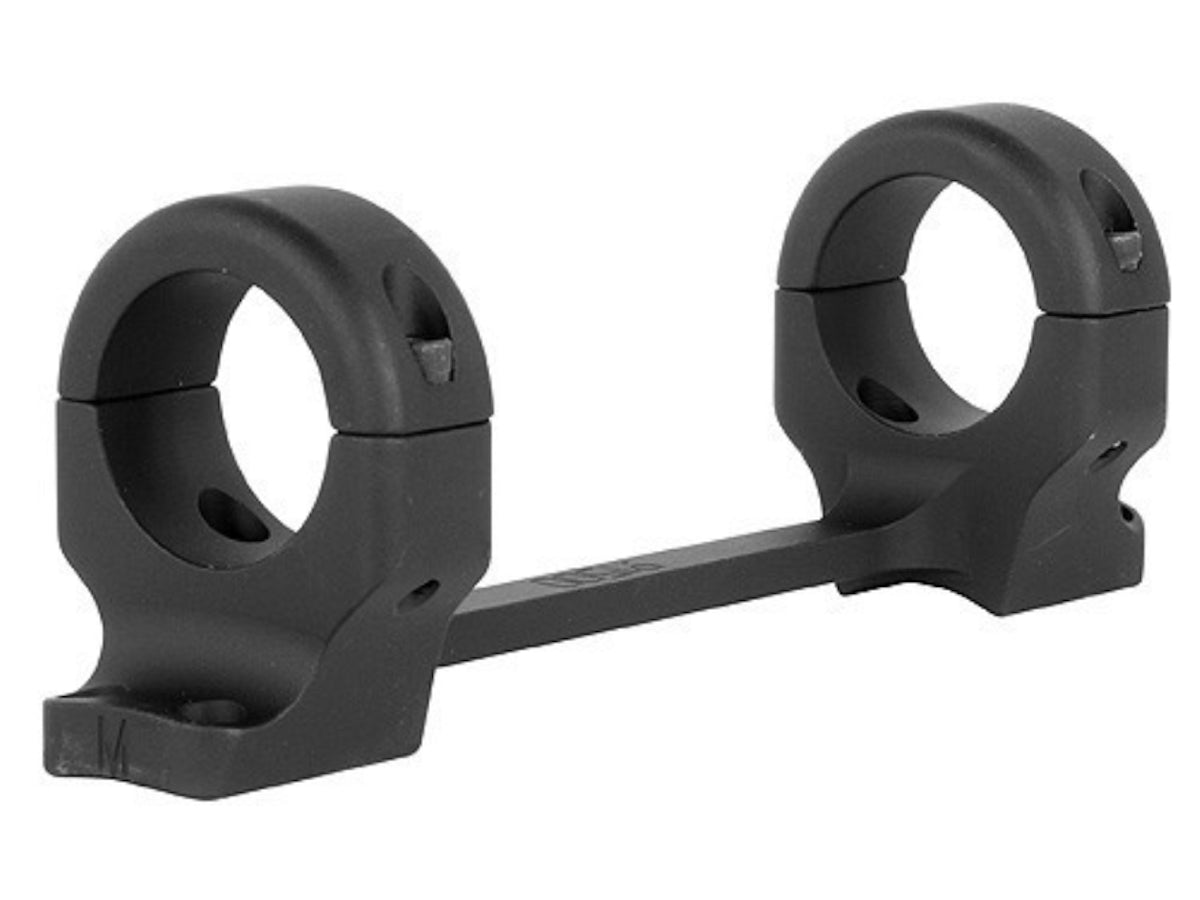

DNZ one piece mounting systems are precision machined from a solid block of top-grade billet aluminum and custom made to fit each type of firearm and align perfectly with your rifle’s receiver.
By using a one piece solution, you are ensuring there are no moving parts between the firearm and the scope.
DNZ mounts are 67% lighter than comparable one-piece mounts with four times the threads and precision socket-head cap screws for absolute strength and security while absorbing shock. These rings can withstand temperature extremes better than steel mounts at a fraction of the weight
Made in the USA
All BAR actions use the same mount. This BAR mount also fits the long action BLR.
Base screws are 6-48 X 1/4″ long and ring screws are 6-40 X 5/8″
Both use 7/64 Allen wrench
Outside to outside of rings is 4.24″
BAR and BLR Long action rings are .63″ wide. 4 Hole to hole spacing dimensions are .50″, 3.19″, .50″
BLR Short action rings are .63" WIDE. 4 Hole to Hole spacing dimensions are .50", 2.81", .50". PLEASE MEASURE THE SPACE AS SOME SHORT ACTIONS REQUIRE THE LONG ACTION MOUNT.
Height of mounts from top of receiver to centerline of scope tube is – low .94″, medium 1.06″, and high 1.19″
