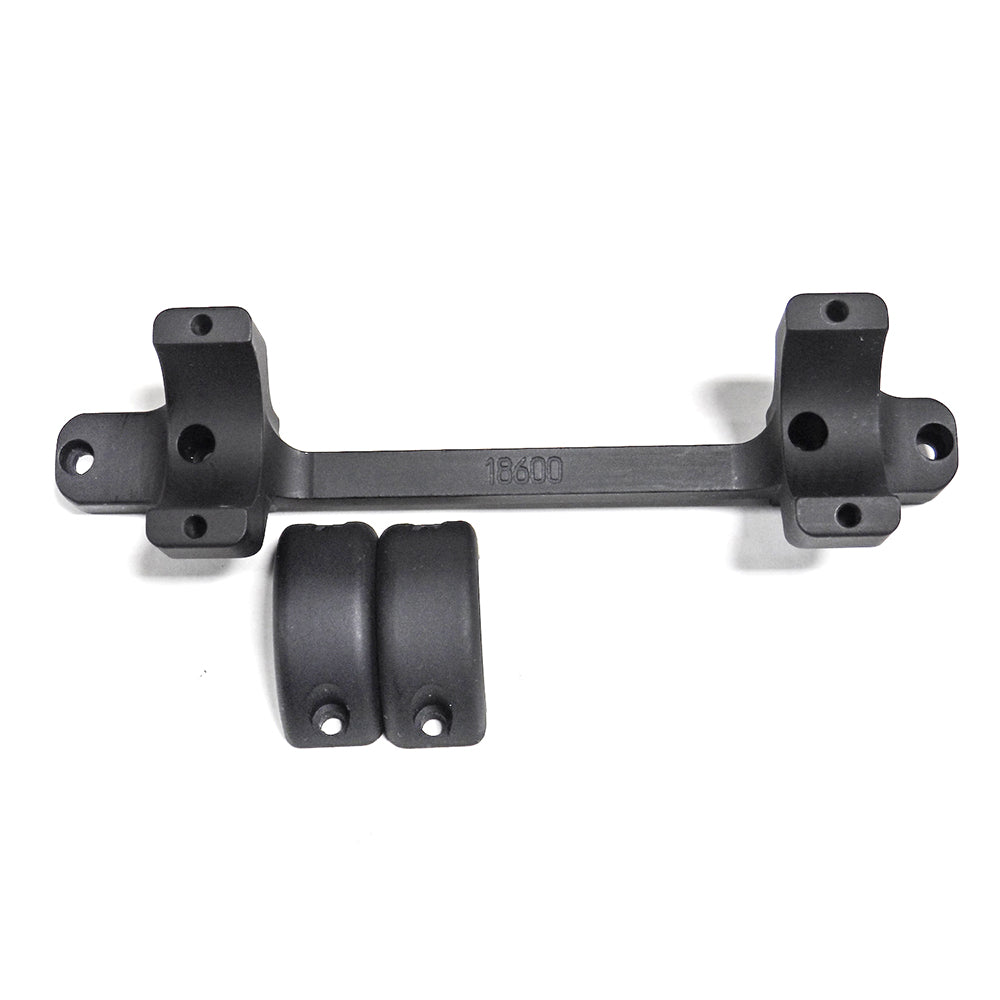

DNZ one piece mounting systems are precision machined from a solid block of top-grade billet aluminum and custom made to fit each type of firearm and align perfectly with your rifle’s receiver.
By using a one piece solution, you are ensuring there are no moving parts between the firearm and the scope.
DNZ mounts are 67% lighter than comparable one-piece mounts with four times the threads and precision socket-head cap screws for absolute strength and security while absorbing shock. These rings can withstand temperature extremes better than steel mounts at a fraction of the weight
Made in the USA
Base screws are 6-48 X 1/4″ long and ring screws are 6-40 X 5/8″ long.
Both use 7/64" Allen wrench
LA: Outside to outside of rings is 4.46″
Rings are .63″ wide.
Hole to hole spacing dimensions are .86″, 3.81″, .86″
Height of mounts from top of receiver to centerline of scope tube is – low .92″, medium 1.05″, and high 1.17″
