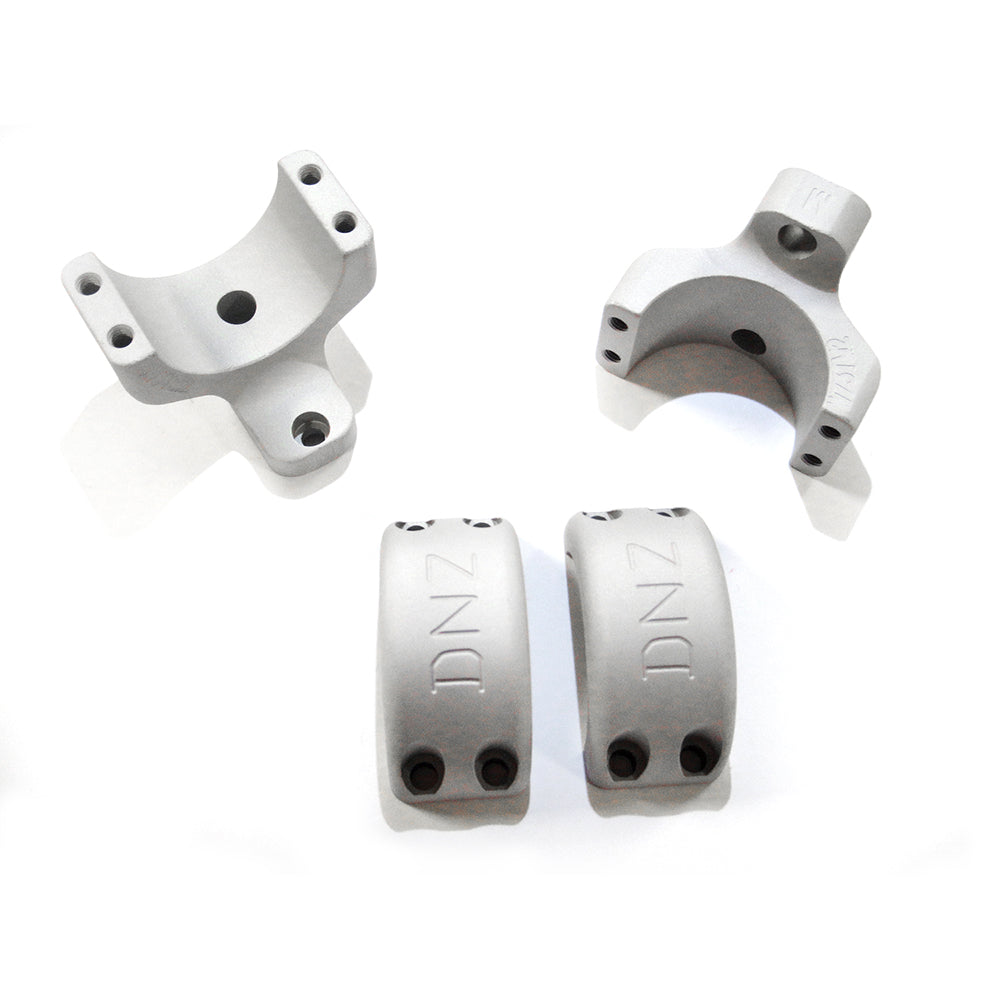

Hunt Masters Signature Series are a two piece mount custom made to fit and align perfectly with your rifle's receiver. With each piece machined from a solid block of top-grade billet 6061T6 aluminum makes them approximately 1/3 the weight of steel while able to better withstand shock and temperature extremes. The single machined piece removes all windage screws and moving parts between the receiver and scope that can become loose overtime.
• Base screws are 6-48x1/4”” long
• Ring Screws are 6-40x5/8” long
• Both use 7/64 Allen wrench
• Standard Rings are .63” wide and Tac rings are .80”
• Standard rings have 2 screws per ring. Tactical have four per ring
• Height of mount from top of receiver to bottom of scope: Low .92”, Medium 1.05”, High 1.17”
